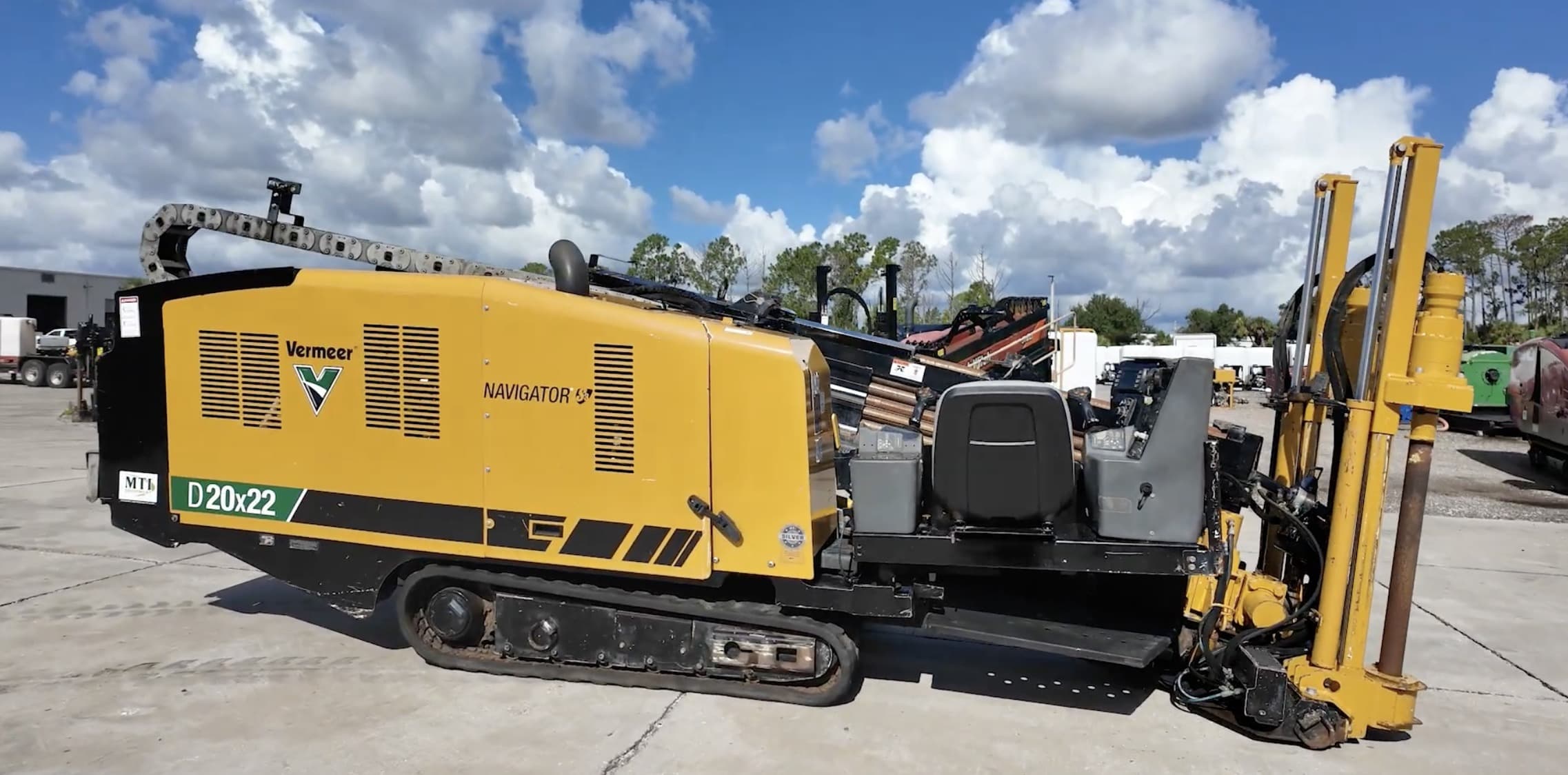

Vermeer D20x22 S3 drill rental
Compact horizontal directional drill for utility and fiber bores.
Specs & rental details →Directional drill rental for utility and fiber bores
Two horizontal directional drills, sourced for your job: the compact Vermeer D20x22 S3 and the larger Ditch Witch JT60. We do not keep them on the yard — call or text with your dates and job ZIP and we confirm whether we can bring one in. Add a self-loading reel trailer if the bore pulls cable or conduit.

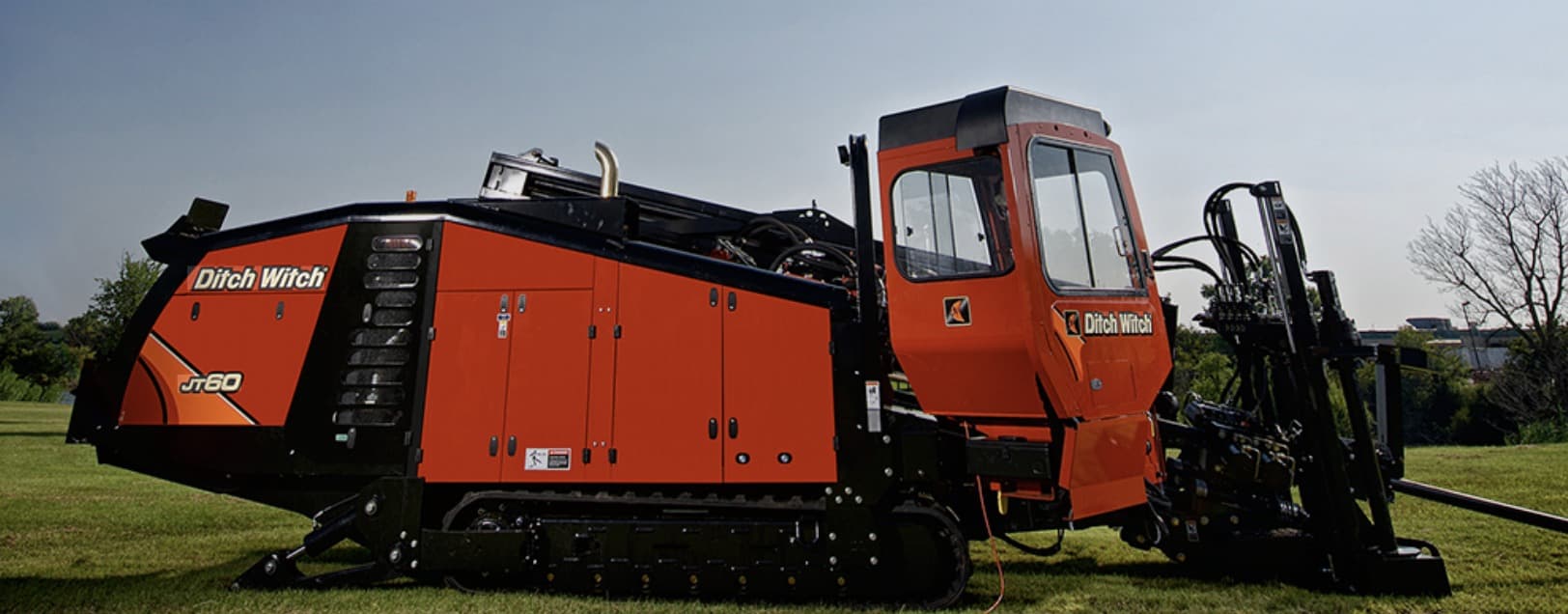

Ditch Witch JT60 drill rental
Larger-bore directional drill for longer and deeper runs.
Specs & rental details →Which drill?
| Measure | Vermeer D20x22 S3 | Ditch Witch JT60 |
|---|---|---|
| Class | Compact | Larger-bore |
| Thrust and pullback | 19,500 lb | 60,000 lb |
| Rotational torque | 2,250 ft-lb (max spindle torque, low range) | 9,000 ft-lb |
| Engine | Deutz TD2.9 diesel, 74 gross hp | 190 gross hp Tier 3 or 200 gross hp Tier 4i diesel, by model year |
| Rental price | Call for availability and rental prices | Call for availability and rental prices |
Manufacturer figures (Vermeer; Ditch Witch). The unit we send may differ by model year — we confirm it when we quote.
Add-on
Pulling cable or conduit? Add a reel trailer
The Stellar RR-185 self-loading reel trailer holds the reel for the pull and loads it hydraulically, so one person can change reels between pulls. Ask us to put it on the same quote as the drill.
Reel trailer rental rates: $75/day, $350/week, $800/month.
Questions before you rent
- Which drill do I need for my bore?
- The Vermeer D20x22 S3 is the compact drill (19,500 lb thrust and pullback); the Ditch Witch JT60 is the larger one (60,000 lb). Tell us the bore length, diameter, soil and job ZIP when you call or text and we tell you which we can source.
- Do you keep directional drills on the yard?
- No — we source them for your job. Call or text (916) 907-8192 with your dates and job ZIP and we confirm availability before you commit.
- Can I rent a reel trailer with the drill?
- Yes. Our Stellar RR-185 self-loading reel trailer can go on the same quote — the add-on is on this page.
- Is delivery available?
- Pickup or delivery is quoted per job. Call or text and tell us the job ZIP.
Also see
We rent across Northern and Central California, including Redding. Delivery is quoted per job.
Need a directional drill?
Dates, job ZIP and the bore you're planning is enough — we confirm whether we can bring one in.
